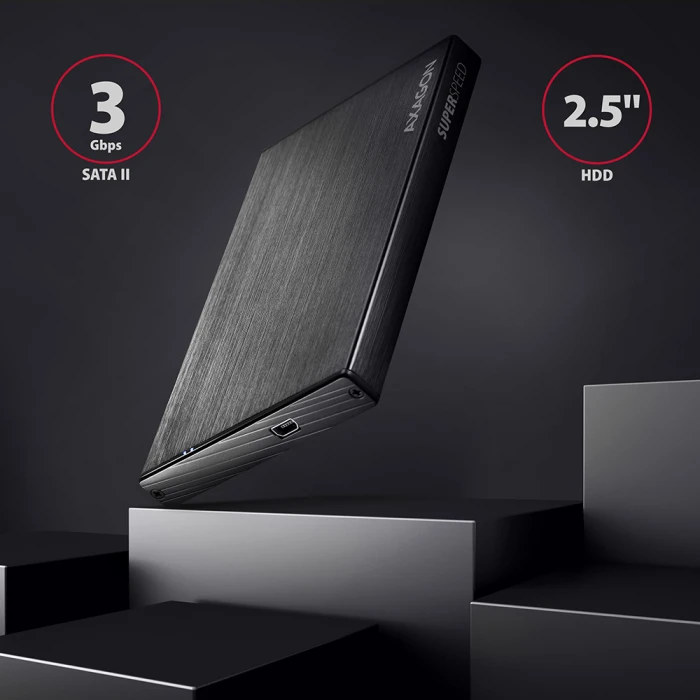

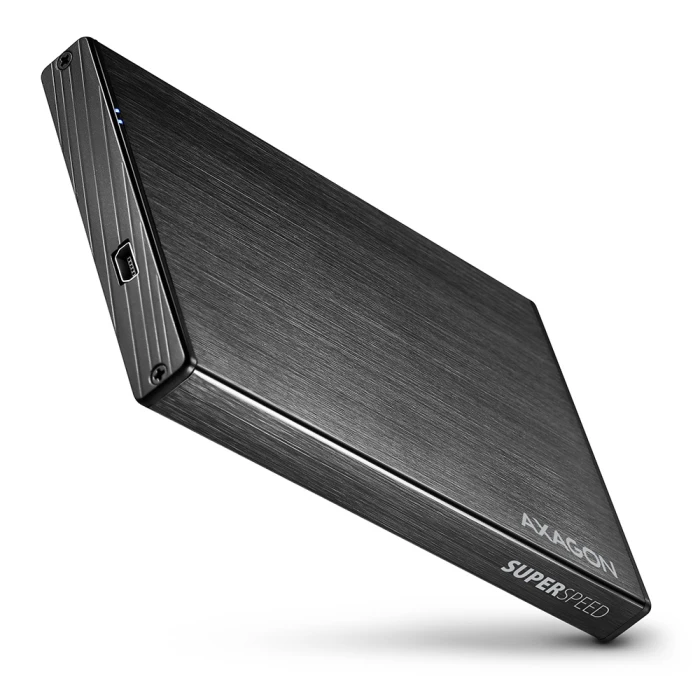

The compact aluminum external box AXAGON EE25-XA3 ALINEbox with SupersSpeed USB 3.2 Gen 1 (USB 3.0) interface designed for 2.5" SATA drives.

Reading of S.M.A.R.T. information monitoring the condition of the external disk. Supports spinning down of connected disks as well as the box.

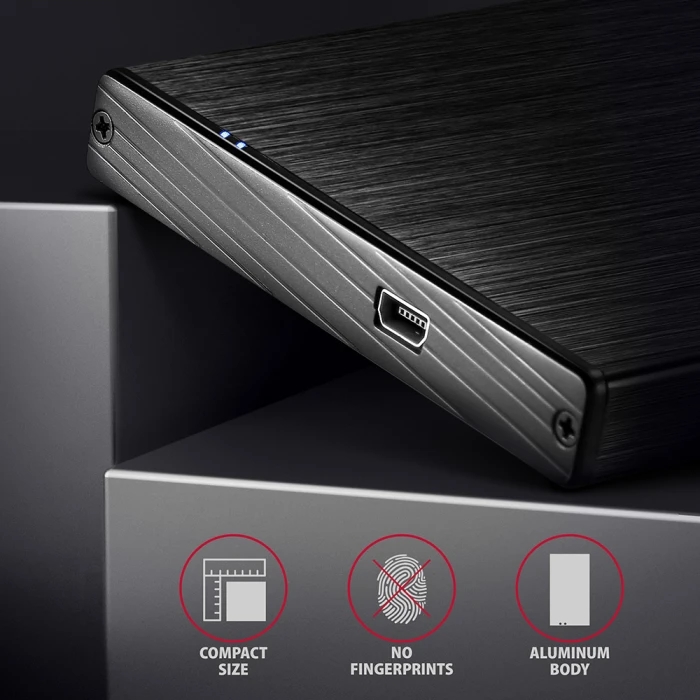

Lightweight and durable cast aluminum case for perfect mechanical protection of the disk and excellent heat dissipation.

The decently shaped case with a brushed surface that provides elegant look and prevents unwanted fingerprints.

Easy installation of the hard disk as well as automatic installation can be handled even by a layman and easily create an external disk.

Input:
• USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) SuperSpeed USB transmission rates up to 5 Gbit/s.
• Connection via micro USB type B female conector.

Device support:
• SATA II - 3 Gb/s (300 MB/s) interface,
• Supports 2.5" HDD drives.

Features:
• Compatible with USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 and backward  compatible with USB 2.0.
• Supports transmission rates 5000 / 480 Mbit/s (SuperSpeed / HighSpeed).
• Supports 2.5" SATA III/II/I drives of a max. height 9.5 mm without limiting maximum capacity.
• Compliant with Serial ATA 2.6 specifikaci (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
• Compliant with Serial ATA 1.0 specifikaci (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
• The total bandwidth / transmission rate of the box is determined by the SATA/300 interface (teor. 3 Gbit/s).
• SSD/HDD boot support in external box.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.

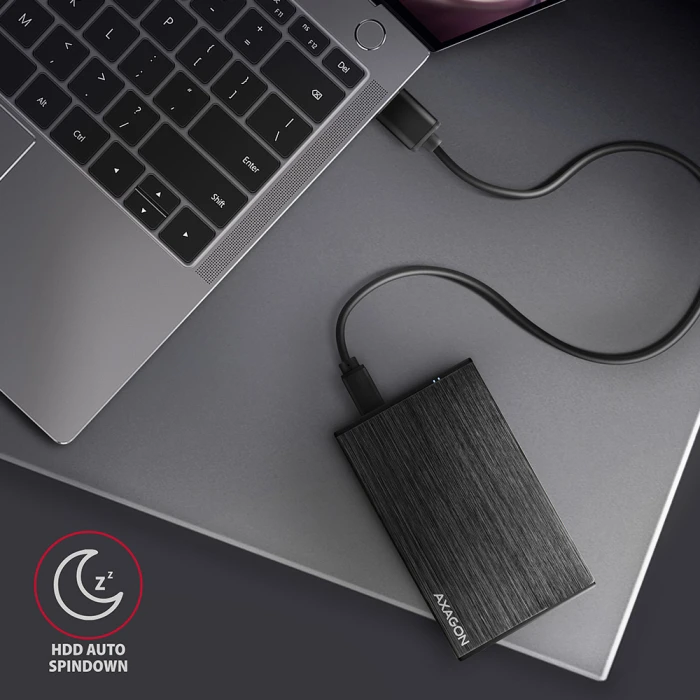

• HDD Spindown support- user possibility to set the interval for disk spindown when idle.
• Connection via USB 3.2 Gen 1 mini B female conector.
• Mini USB-B / USB-A cable 60 cm long is included.
• Supplying the power via USB 3.2 Gen 1 bus up to 900mA from one USB port is sufficient in all cases.

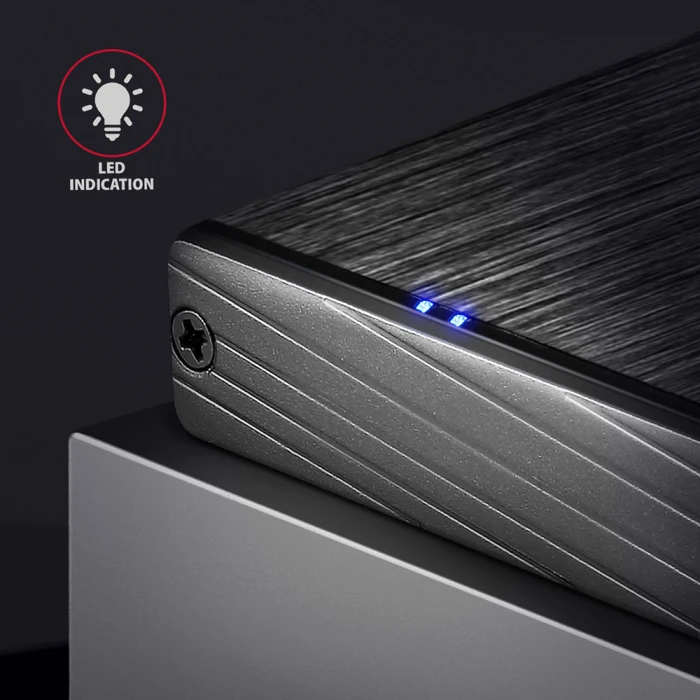

• Non-dazzling blue, decent LED indicates the connection to the computer's USB port (permanent light) and the data transmission (blinking).

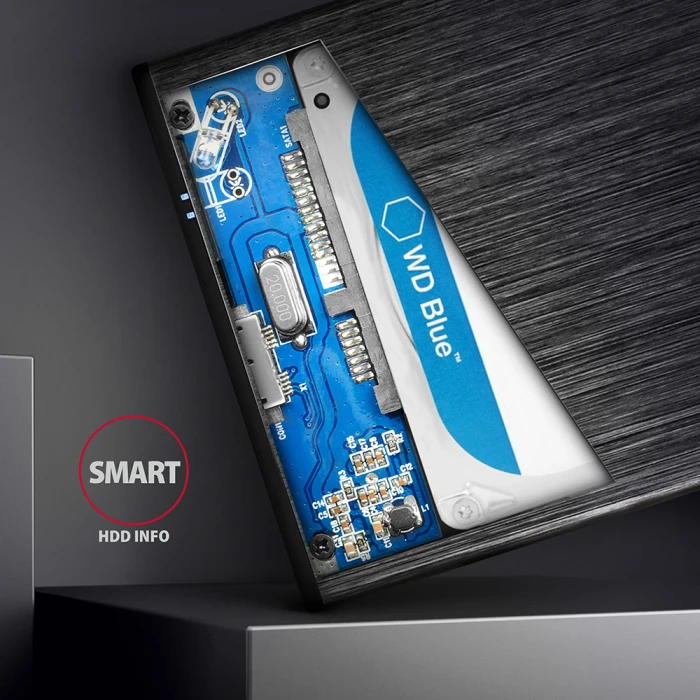

• Very simple disk installation - the disk is connected directly into the SATA connector of the motherboard, and inserted into the box body; the front is fastened with two screws using a screwdriver that is included.

Other features:
• Compact dimensions 130 x 78 x 12.5 mm.
• External box weight 77 g (without USB cable and disk).

Supported OSs:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

Package contains:
• USB 3.2 Gen 1 external box for 2.5" SATA driver
• mini USB-B - USB-A cable 60 cm long,
• mounting screws and the screwdriver,
