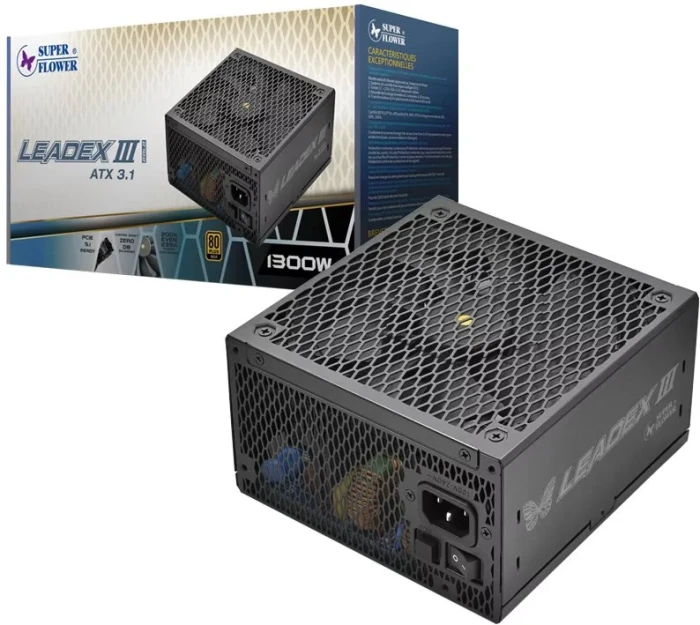

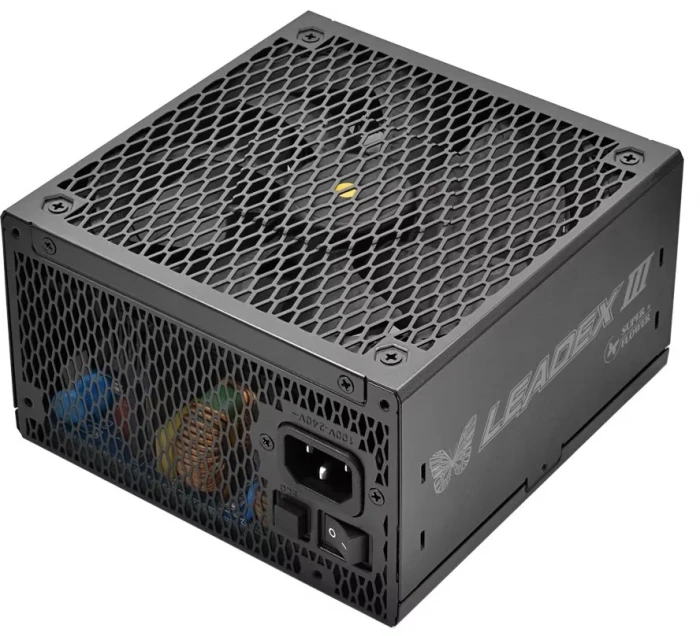

Super Flower Leadex III UP Gold 1300W
Super Flower Leadex III UP Gold 1300W

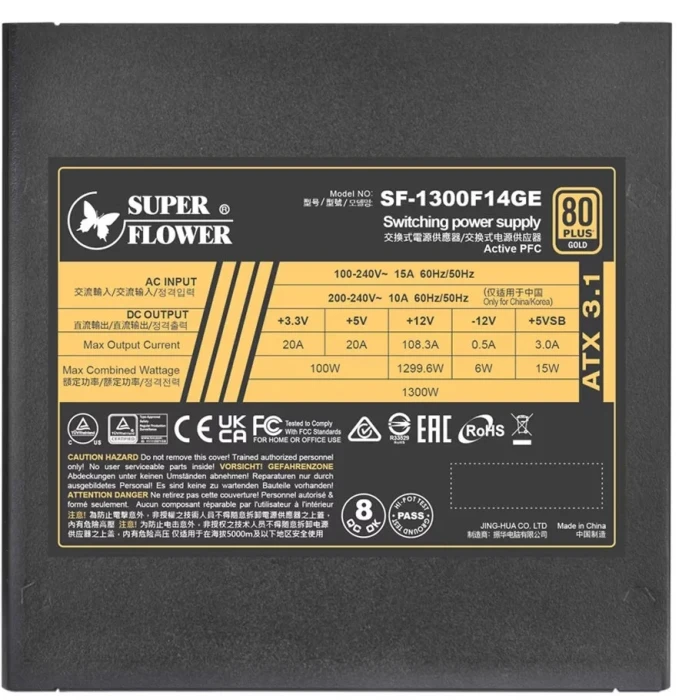

SF-1300F14GE ATX 3.1 Compatible, 80PLUS Gold Certified

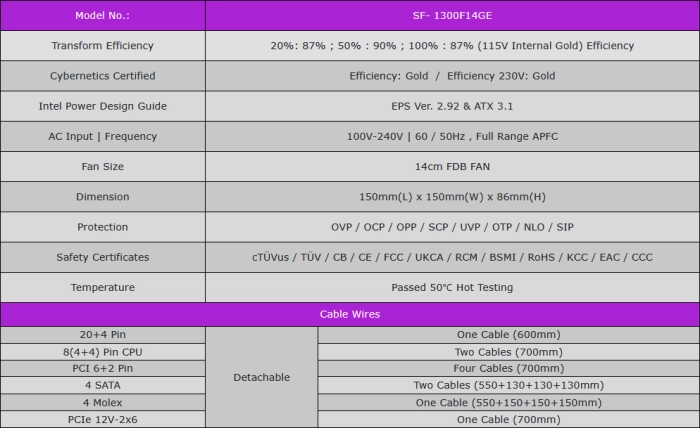

| Характеристика | Стойност |
|---|---|
| Мощност | 1300 W |
| Сертификат 80+ | 80 Plus GOLD |
| Тип окабеляване | Модулно |
| Формат | ATX |
| Размери (mm) | 150 x 150 x 86 mm |
| Захранване |
100 V - 240 V 50~60 Hz |
| Специални характеристики | Active PFC |
| Вентилатор (PSU) |
140 mm вентилатор Fluid Dynamic Bearing |
| Конектори (PSU) |
ATX 24-pin x 1 CPU 4+4-pin x 2 PCI-e 6+2-pin x 4 SATA x 8 MOLEX x 4 PCI-e 5.1 (16pin) 12V-2x6 pin x 1 |
| Защити |
OVP (Over Voltage Protection) OCP (Over Current Protection) UVP (Under Voltage Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) SCP (Short Circuit Protection) NLO (No Load Operation) SIP (Surge and Inrush Protection) |
| Cybenetics certification | Efficiency: Gold |
| ATX 3 | ATX 3.1 |
| Гаранция | 84 месеца |
| Арт. номера |
SF-1300F14GE
|
★ 140mm F.D.B Fan: Unique 7-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
★Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
★ New patented technology of Buckle (20+4) Pin connector (Patent No.: Taiwan M563575 ; China 7566010,USA)
★ Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple
★ ECO-design
1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB

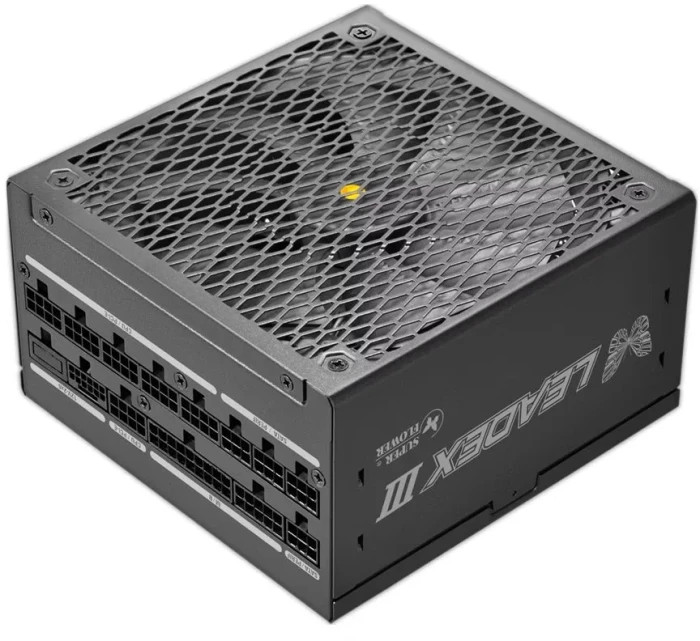

★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
★ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
★ Japanese Main Capacitor

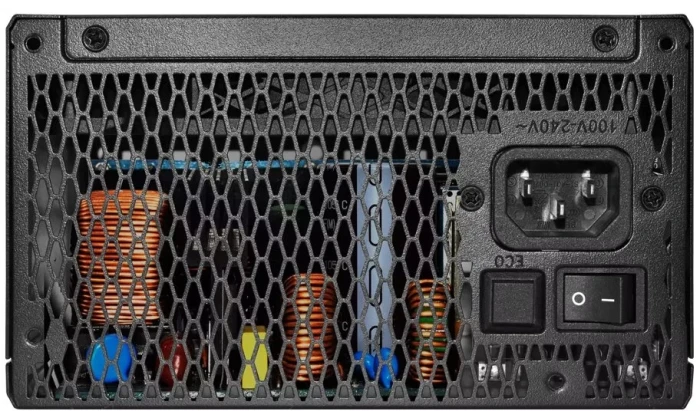

★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
★ Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
★ More than 2,000 times On/Off test
★ Lead-free Green Materials with RoHS / WEEE Compliance
★ Perfect For Professional & High Performance Gaming System
★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
